Transcom


FM Antenna

Foam Cable

Air Cable

All prices are list, please call or email for a quotation



Antenna

FM1

Model
Description
List Price

FM1

1 through 8 bays

Built with low power broadcaster in mind. Power rating of 500 watts per bay; up to 3 kW for 6 bays. Power divider required for 3 bays or more.
Field Tunable. From 88 to 108 MHz under 1.3:1 VSWR.
Center of Tuning. Ranges under 1.1:1 VSWR.
Omnidirectional or Directional Patterns. There are many standard patterns available and can provide patterns for a customer's specific coverage area.
Pressurization is not Required.
Rugged Construction. Each bay is constructed with high grade stainless steel for excellent corrosion resistance and good mechanical characteristics.
Radomes or Electrical Deicers (Optional). Available with either fiberglass radomes or deicers for areas with heavy icing / snow conditions.
Standard Mounting Brackets. Fits 1" to 4" Tower Leg or Pipe.

Warranty. Limited 2-year warranty on defects and workmanship to the original purchaser.
$870.00



FM3

Model
Description
List Price

FM3

1 through 12 bays

Durable corrosion resistant construction, fabricated from rugged heavy wall copper and naval brass. All joints are TIG welded. Each bay is rated at 3 Kw, with a maximum of 15 Kw for five bays or more. Pressurized and grounded, the entire antenna system is presssurized to the feed point of each bay and each bay is DC grounded, thus eliminating the need to purchase a shorting stub.

Options:
Beam tilt and/or null fill, custom vertical patterns, center fed arrays(even number of bays only), electrical deicers for heavy icing conditions, custom directional antenna patterns. (Directional patterns based on the customer's mounting structure are available to meet FCC requirements).

A 2 year limited warranty on defects in material and workmanship to the original purchaser.
$5,390.00



FM10

Model
Description
List Price

FM10

1 through 12 bays

Durable corrosion resistant construction, fabricated from rugged heavy wall copper and naval brass. All joints are TIG welded. Each bay is rated at 31.0 Kw, with a maximum of 40 Kw for four bays or more. Pressurized and grounded, the entire antenna system is presssurized to the feed point of each bay and each bay is DC grounded, thus eliminating the need to purchase a shorting stub.

Options:
Beam tilt and/or null fill, custom vertical patterns, center fed arrays(even number of bays only), electrical deicers for heavy icing conditions, custom directional antenna patterns. (Directional patterns based on the customer's mounting structure are available to meet FCC requirements).

A 2 year limited warranty on defects in material and workmanship to the original purchaser.
$6,990.00

Top

FM Circular Polarization Antennas

Model
Description
List Price

MP 1

1 to 8 bays available

The MP antenna is the cheaper antenna in the whole range of circular polarization antennas, but the manufacturing quality is exactly the same as the other. Thousands of MP have been installed from all over the world, so this is a sign of quality of this antenna. The MP is designed to maintain a continuous power of 500W, and it is factory-adjusted at the frequency required by the customer (88 ~ 108MHz).

$375.00



GP 1

Model
Description
List Price

GP 1

1 to 6 bays available

The GP antenna is designed to maintain a continuous power of 1500W. It is made of stainless still, so it can work in extremely hard environmental conditions without changes in its technical features. The antenna is supplied (factory-adjusted) in the frequency required by the customer (88 ~ 108MHz). Anyway, the frequency can be changed later under customer request

$450.00



SGP 1

Model
Description
List Price

SGP 1

1 to 8 bays available

The SGP antenna is designed to maintain a continuous power of 4000W. This antenna is specially recommended for radio stations that need a cost-effective and high-efficiency solution. It is made of stainless steel, so it can work in extremely hard environmental conditions without changes in its technical features. The inner part of the SGP is made of silver-plated brass. The antenna is supplied (factory-adjusted) in the frequency required by the customer (87.5 ~ 108MHz). Anyway, the frequency can be changed later under customer request.

$650.00



FM Vertical Polarization Antennas

VER-TB

Model
Description
List Price

VER-TB

1 to 6 bays available

The VER-TB is a cost-effective vertical polarization antenna ideal to be used in medium power radio stations. The input connector is EIA 7/8” type and it is designed to maintain a continuous power of 4000W. The operating frequency is factory-adjusted at the frequency required by the customer, but it can be changed later under customer request. It is made of stainless steel, so it can work in extremely hard environmental conditions without changes in its technical features. It is an ideal solution as a second antenna and security system antenna.

$785.00



FM Directional Antennas

YAV 3 DIR

Model
Description
List Price

YAV 3 DIR

The YAV 3 DIR is a three-element antenna that is ideal to be individually used in stereo FM systems. It is made of stainless steel and designed to work up to 4KW power.  It includes DC-ground lightning protection. The input connector is EIA 7/8 type. The YAV 3 DIR (vertical polarization) provides high-directivity, big bandwidth and stable radio-electric field. Furthermore, it is able to work in extremely hard environmental conditions without changes in its technical features.

Call/email



YAV 5 DIR

Model
Description
List Price

YAV 5 DIR

The YAV 5 DIR is a five-element antenna with the same characteristics than the YAV 3 DIR, but with higher gain.  It is designed to work with up to 4KW power and the input connector is EIA 7/8 type. The YAV 5 DIR is an ideal low-cost solution for radio stations that need significant signal concentration.

Call/email

PA-FMLCP

Model
Description
List Price
PA-FMLCP

2, 4, 6, 8 bays with multiple configurations available



Power Antenna, PA-FMLCP, Circularly Polarized

Circularly polarized low power FM broadcast antenna manufactured from aluminum or stainless steel. The antenna is very small, lightweight, has low wind load, and will accept 500 watts maximum input power. The antenna is pre-tuned to the desired frequency prior to shipping. Frequency Range: 88-108 MHz, Input connector: N female. VSWR: <1.08200 KHz, Gain: -2.0 dBd, Polarization: Circular, Impedance: 50 Ω, Max. input power: 500 W, -3dB HPBW (E-Plane) 360 degrees, -3dB HPBW (H-Plane) 180 degrees.
call or email

PA-FMSDCPB



Model
Description
List Price
PA-FMSDCPBD

2, 4, 6, 8 bays with multiple configurations available



Power Antenna, PA-FMSDCPBD, Circularly polarized

Circularly polarized FM broadcast antenna, broad band from 88-108 MHz. Manufactured from stainless steel and welded, this antenna performs well where circular broadcast coverage is required. Since it is broad band, it is ideal for multi channel input into a single antenna array. When mounted in an array of 2 or more antennas, VSWR is less than 1.25:1 across the band. Each antenna is rated at 2kW of input power, with higher input power available upon request. Frequency Range: 88-108 MHz, Input connector: N female or 7/16” female. VSWR: <1.25 in an array across 88-108 MHz, Gain: -1.5 dBd single bay, Polarization: Elliptical / Circular, Impedance: 50 Ω, Max. input power: 2kW per antenna.

$2,965.00

PA-FMSDP



Model
Description
List Price
PA-FMSDP
2, 4, 6, 8 bays with multiple configurations available

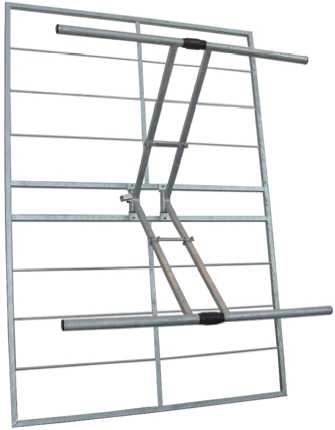

Power Antenna, PAFM-SDP, Dipole PAne

The PAFM-SDP is made of Hot-dip galvanized steel and the internal material is made up of machined brass and stainless steel. Antenna and radiating elements are DC grounded for lightening protection. HDG clamps are included for attachment to customer supplied mast of any OD. Antenna design and internal feel ensure reliable operation under extreme icing. Frequency Range: 88-108 MHz, Input connector: N female or 7/16” female. VSWR: <1.20, Gain: 7.5 dBd, Polarization: Horizontal or Vertical, Impedance: 50 Ω, Max. input power: 3kW, -3dB HPBW (E-Plane) 73 degrees, -3dB HPBW (H-Plane) 58 degrees.

$2,100.00

PA-FMBDP

Model
Description
List Price
PA-FMBDP
2, 4, 6, 8 bays with multiple configurations available

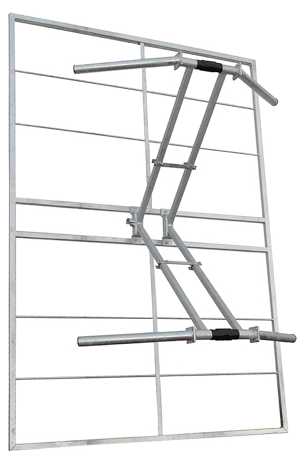

Power Antenna, PA-FMBDP, Bent Dipole Panel

The PAFM-BDP is made of Hot-dip galvanized steel and the internal material is made up of machined brass and stainless steel. Antenna and radiating elements are DC grounded for lightening protection. HDG clamps are included for attachment to customer supplied mast of any OD. Antenna design and internal feel ensure reliable operation under extreme icing. Frequency Range: 88-108 MHz, Input connector: N female or 7/16” female. VSWR: <1.15, Gain: 7.0 dBd, Polarization: Horizontal or Vertical, Impedance: 50 Ω, Max. input power: 2kW, -3dB HPBW (E-Plane) 80 degrees, -3dB HPBW (H-Plane) 56 degrees.
$2,315.00

PA-FMVDP

Model
Description
List Price
PA-FMVDP2

multiple configurations available

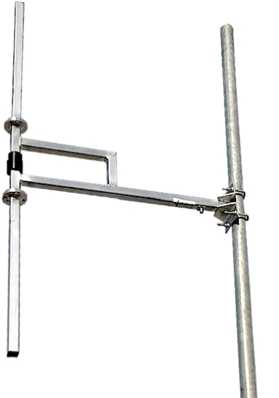

Power Antenna, PA-FMVDP, Vertical Dipole

Band II

Vertically polarized FM dipole manufactured out of either aluminum or stainless steel. The dipole can be tuned for broadband service with a VSWR of 1.35:1, or frequency tuned on channel with a VSWR of less than 1.05: 1. The antenna has removable elements for compact shipping. Frequency Range: 88-108 MHz, Input connector: N female or 7/16” female. VSWR: <1.35 across band or <1.05 frequency tuned, Gain: 2.0 dBd, Polarization: Vertical, Impedance: 50 Ω, Max. input power: 5kW, -3dB HPBW (E-Plane) 220 degrees, -3dB HPBW (H-Plane) 70 degrees.
$915.00

Top

Nicom

Linear Polarization



BKG1/P Medium Power

Model
Description
List Price

BKG1/P Medium Power 2, 4, 6, 8 bays available

This broadband dipole antenna constructed of hot dipped galvanized steel is designed to last a long time in any weather condition. Because of its sturdy construction it can support up to 2 kw of input power with the appropriate connector. Since it has a wide angle of radiation it is suggested for omni-directional arrays. Due to the fact that is easily disassembled and reassembled, it can placed in a compact container making it very portable and inexpensive to ship.

$725.00





Yagi

BKY3 / P

Model
Description
List Price

BKY3 / P
2, 4, 6, 8 bays available

This very sturdy antenna was created to be used by itself or as an element of a system made up of various units. With a 120 radiation angle it has good gain on a wide angle of coverage. Therefore, it is ideal for medium and high power repeaters. It is furnished with a 7/8 EIA connector and has a maximum input power of 2 kw. Due to the fact that is easily disassembled and reassembled, it can placed in a compact container making it very portable and inexpensive to ship.

$760.00



CircularPolarized Antenna

BKG/88

Model
Description
List Price

BKG/88
2, 4, 6, 8 bays available

This antenna, built of stainless steel is designed for circular polarized transmission with medium and low power installations. It is factory tuned to the requested frequency, but it can be re-tuned in the field, with proper test equipment, thanks to the adjustable sliding stubs. The low cost of this antenna makes it a good choice even for systems composed of many elements.

$510.00



BKG/77

Model
Description
List Price

BKG/77
2, 4, 6, 8 bays
available

This antenna constructed completely of stainless steel offers the possibility of simultaneously utilizing vertical and horizontal polarization for better coverage especially in urban areas. In order to facilitate and decrease shipping costs this model is simple to break down and reassemble when ready to be installed. It is insulated with teflon and with the appropriate connector has a maximum input of 2 kW.

$960.00



BKG/77 HIGH POWER

Model
Description
List Price

BKG/77 HIGH POWER
2, 4, 6, 8 bays available

This antenna constructed completely of stainless steel, offers the possibility of simultaneously utilizing vertical and horizontal polarization for better coverage especially in urban areas. In order to facilitate and decrease shipping costs this model is simple to break down and reassemble when ready to be installed. It is insulated with teflon, has a 7/8 connector and maximum input of 2 kW.

$1,120.00



Radio STL Antennas

BKP120

Model

Description

List Price

BKP120

The Nicom 900MHz Parabolic STL Directional Antenna. 900MHz band for STL Applications. High Gain, light weight, 4ft diameter. This is a folded edge anodized aluminum parabolic antenna particularly suitable for STL systems. Due to its narrow radiation pattern, this antenna has excellent front-to-back and front-to-side ratios minimizing the possibility of interference from other stations. Because of its high directivity and gain this antenna is well suited for long distance STL links. N Connector. FOB: San Diego, CA

$510.00



BKP120HD and BKP180HD

Model

Description

List Price

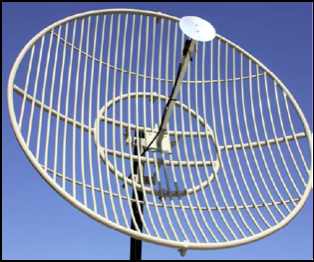

BKP120HD

The Nicom STL Directional Grid Parabolic Antenna 900-960 MHz 4ft. 900MHz band for STL Applications. High Gain, Heavy Duty, 4ft diameter. N Connector. FOB: San Diego, CA

$710.00

Model

Description

List Price

BKP180HD

The Nicom STL Directional Grid Parabolic Antenna 900-960 MHz 6ft. High Gain, Heavy Duty, 6ft diameter N Connector. FO B: San Diego, CA

$1,190.00





LOG II/III P8

Model
Description
List Price

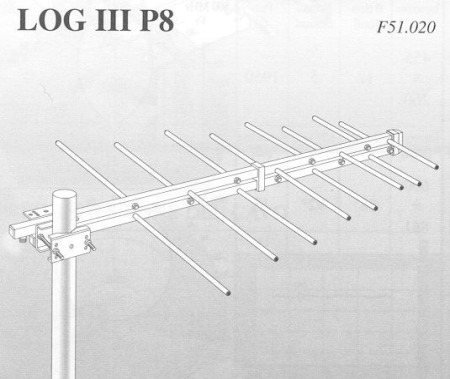

LOG II/III P8
200 MHz & 300 MHz Bands

This antenna is specifically designed for use with STL systems. With a 100 radiation angle it has high gain on a wide angle of coverage. Constructed of aluminum, it is light and easy to install. Packing dimensions are also very minimal.

$370.00

Top



 Andrew Cable


 Foam Cable

LDF4-50A
" Foam Cable

Equipment
Description
Price
Cable (Per Foot) Andrew LDF4-50A, 1/2" Foam
$3.00
Connector Andrew L4PNM-RCF, N Type Male
$29.00
Connector Andrew L4PNF-RCF, N Type Female
$29.00
Hoisting Grip Andrew #43094
$18.00
Grounding Kit Andrew #241088-1
$17.99
Wall/Roof Feedthru Andrew #40656A-3
$34.52
Wraplock #12395-1 - 100ft Stainless Steel Wraplock w/fastners
$95.69
Attach Factory connector attach
$25.00



AVA5-50A
7/8" Foam Cable

Equipment
Description
Price
Cable (Per Foot) Andrew AVA5-50A, 7/8" Foam
$7.26
Connector, AL5E78-PS Andrew 7/8" EIA flange connector, positive stop, for AVA5-50
$205.00
Hoisting Grip Andrew #19256B
$26.18
Grounding Kit Andrew #204989-2
$20.67
Wall/Roof Feedthru Andrew #40656A-1
$34.92
Wraplock #12395-1 - 100ft Stainless Steel Wraplock w/fastners
$95.69
Attach Factory connector attach
$25.00



LDF6-50
1-1/4" Foam Cable

Equipment
Description
Price
Cable (Per Foot) Std Foam Heliax Cable LDF6-50 1 1/4"
$12.25
Connector #AL7E158-PS- EIA (1-5/8) Connector
$465.00
Attach Factory Chg ATTACH-LDF6 - Factory Charge
$35.00
Rnd Member Adpt 31670-2 (10/kit)
$15.85
Hangars (10) Andrew #42396A-1
$24.48
Hoisting Grip Andrew #29961
$29.45
Grounding Kit Andrew #241088-8
$24.28
Wall/Roof Feedthru Andrew #40656A-5
$41.90


LDF7-50A
1-5/8" Foam Cable

Equipment
Description
Price
Cable (Per Foot) LDF7-50A 1-5/8" Coaxial Cable, 50 Ohm Foam Heliax
$18.30
Connector Andrew #AL7E158-PS- EIA (1-5/8) Connector
$465.00
Std Hangar Kits (10) Andrew #42396A-2
$24.48
Hoisting Grip Andrew #24312A
$31.42
Grounding Kit Andrew #204989-24
$22.81
Wall/Roof Feedthru Andrew #40656A-2
$49.88
Attach Charge ATTACH-AC3 - Factory Attachment CHG
$35.00
Adapter Kit 31670-2 Round Member Adpt Kit - 10
$15.85

Top

 Air Cable

HJ7-50A
1-5/8" Air Cable

Equipment
Description
Price
HJ7-50A 1 5/8" air-coax cable, per ft. Andrew Cable
$26.02
87G 1 5/8" EIA flange connector, gas barrier
$407.20
87R 1 5/8" EIA flange connector, gas pass
$353.70
204989-24 1 5/8" standard grounding kit
$22.81
40656A-2 1 5/8" wall/roof Feedthrough, single
$49.88
31670-2 Round Member Adapter kit
$15.85
Andrew #24312A hoisting grip for 1 5/8" coaxial cable and EW44, EW52, and EW63 elliptical waveguides
$31.42
Attachment charge Factory Attachment Charge ATTACH-AC3
$54.00
MT300-81015 Dehydrator 115 Vac 60 Hz, no sound deadening 3-8 PSI .3 CFM Low Pressure alarm
$3,410.00



HJ8-50B
3"Air Cable

Equipment
Description
Price
Cable (Per Foot) HJ8-50B 3" air dielectric coax /ft
$48.29
Connector Andrew #H8MP-302, EIA GP
$754.85
Connector Andrew #H8MB-302, EIA GB
$754.85
Hangar Kits (10) 31766A-11 (10/kit) 1/5 ft
$77.60
Rd Member Adapter 31670-2 (10/kit) 1/5ft
$15.85
Hoisting Grip Andrew #26985A
$81.14
Grounding Kit Andrew #204989-25
$23.52
Wall/Roof Feedthru Andrew #40394-2
$125.60
Install factory installed GP Connector 1st off reel
$75.00
Auto Dehydrator MT300-81015 med auto membrane/220V/50Hz
$3,410.00



Jampro Antenna

call or email for a quote

LPFM JLST, JDIY, JYFM , JLCP
Translator JYFM, JLVP, JLHP, JLST, JDIY , JLCP
Class A (3 to 6 kW ERP) JLPC, JMPC, JBCP-M, JLLP
Class B (25 to 50 kW ERP) JMPC, JBCP-M, JBCP-H
Class C (50 to 100 kW ERP) JHPC, JHCP, JBCP-H
Directional Side Mount JMPC, JHPC, JHCP, JBCP-M, JBCP-
Vertical Only JLVP, JMVP, JHVP, JBVP
Horizontal Only JLHP, JMHP, JHHP
Elliptical JLPC,MPC,JHPC-70/30, JLEP, JMEP, JHEP, JEPD
HD (I.B.O.C.) Interleaved JMPC-HD, JBCP-M-HD, JBCP-H-HD
HD (I.B.O.C.) Separate Aperture JMPC-HD, JBCP-M-HD, JBCP-H-HD
HD (I.B.O.C.) Panels JAHD -HD Dual Input,   JADP-HD Dual Input ,   JCPD-HD , JCPD-HD
HD Dual Input Side Mount (low wind load) JSHD Dual Input
HD All Products and information HD Radio











Top

 All prices are list, please call or email for a quotation
